HSMC-A100-Q00J1 Datasheet
Product Details
Description
This family of SMT LEDs is packaged in the industry standard PLCC-2 package. These SMT LEDs have high reliability performance and are designed to work under a wide range of environmental conditions. This high reliability feature makes them ideally suited to be used under harsh interior automotive as well as interior signs application conditions.
Features
• Industry standard PLCC-2 package
• High reliability LED package
• High brightness using AlInGaP and InGaN dice technologies
• Available in full selection of colors
• Super wide viewing angle at 120˚
• Available in 8 mm carrier tape on 7 inch reel (2000 pieces)
• Compatible with both IR and TTW soldering process
Applications
• Interior automotive
–Instrument panel backlighting
–Central console backlighting
–Cabin backlighting
• Electronic signs and signals
–Interior full color sign
–Variable message sign
• Office automation, home appliances, industrial equipment
–Front panel backlighting
–Push button backlighting
–Display backlighting
Specifications
| Attribute | Attribute Value |
| Manufacturer | Broadcom |
| Product Category | Discrete LED Indicator |
| Color | Red |
| Series | - |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 2-PLCC |
| Mounting-Type | Surface Mount |
| Features | - |
| Size-Dimension | 3.20mm L x 2.80mm W |
| Supplier-Device-Package | 2-PLCC |
| Orientation | Top View |
| Viewing-Angle | 120° |
| Vf | 1.9V |
| Current-Test | 20mA |
| Millicandela-Rating | 100mcd |
| Wavelength-Peak | 635nm |
| Lens-Style-Size | Round with Flat Top, 2.20mm |
| Lens-Color | Colorless |
| Lens-Transparency | Clear |
| Wavelength-Dominant | 626nm |
| Height-Max | 2.10mm |
| Maximum Operating Temperature | + 100 C |
| Operating temperature range | - 55 C |
| Vf-Forward-Voltage | 1.9 V |
| Illumination-Color | Red |
| LED-Size | 3.2 mm x 2.8 mm x 1.9 mm |
| If-Forward-Current | 20 mA |
| Package-Case | PLCC-2 |
| Wavelength-Color-Temperature | 626 nm |
| Luminous-Intensity | 100 mcd |
| Lens-Color-Style | Clear |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
HSMC-A100-Q00J1
Optoelectronics | Single Color LED, Red, 2.2mm, LCC-2 | Broadcom Limited | HSMC-A100-Q00J1 vs HSMC-A100-Q00J1 |
Descriptions
LED; SMD; 3528,PLCC2; red; 71.5-100mcd; 3.5x2.8x1.9mm; 120°; 20mA
TME
LED Uni-Color Red 626nm 2-Pin PLCC T/R
Verical
LED SMD Standard Red Epoxy Lens 626nm, 100mcd
Mouser
RED ALINGAP LED MIN 71.5MCD @20MA PLCC2
Avnet Asia
Red LED PLCC2 Top Mt HSMC-A100
RS Components
LED SMT RED HSMC-A100-Q00J1 PLCC-2
IBS Electronics
Surface Mount LED Indicator
Avago
LED 635NM RED 2-PLCC SMD
Digi-Key
@PLCC2,TOP MT,ALINGAP,RED <(10)
Jameco
PLCC2,Top Mt,AlInGaP,Red
WPG Americas
LED Lamp; Luminous Intensity:100?cd; Viewing Angle:120°; Forward Current:20mA; Forward Voltage:1.9V; Color:Red; LED Color:Red; LED Gas Type:AlInGaP; Leaded Process Compatible:Yes; Lens Width:2.2"; Mounting Type:Surface Mount ;RoHS Compliant: Yes
Newark
LED, SMD, PLCC2, RED; LED / Lamp Size:PLCC-2; LED Colour:Red; Typ Luminous Intensity:100mcd; Viewing Angle:120°; Forward Current:30mA; Voltage, Vf Max:1.9V; Operating Temperature Range:-40°C to +100°C; Case Style:PLCC-2; Current, If Luminous Intensity:20mA; Current, If Max:30mA; Lens Type:Untinted Clear; Min Luminous Intensity @ If:63mcd; Termination Type:SMD; Voltage, PIV Max:5V; Voltage, Vf Typ:1.9V; Wavelength, Peak:626nm; Wavelength, Typ:635nm
Farnell
LED, SMD, PLCC2, RED; LED Colour:Red; Luminous Intensity:100mcd; Viewing Angle:120°; Forward Current If:20mA; Forward Voltage:1.9V; LED Mounting:SMD; Lens Shape:Round; Wavelength Typ:635nm; MSL:MSL 2A - 4 weeks; SVHC:No SVHC (19-Dec-2011); Current If Luminous Intensity:20mA; Dominant Wavelength:626nm; Forward Current If Max:20mA; Forward Voltage VF Max:1.9V; LED / Lamp Size:PLCC-2; LED Type:Standard; Lens Style:Untinted Clear; Luminous Intensity @ If Min:63mcd; Luminous Intensity Typ:100mcd; Mounting Type:SMD; No. of Pins:2; Operating Temperature Range:-40°C to +100°C; Opto Case Style:PLCC; PIV Max:5V; Package / Case:PLCC-2; Peak Forward Current:30mA; Peak Wavelength:626nm; Termination Type:SMD; Voltage Vf Typ:1.9V
element14 APAC
Who we are?
is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
|
|

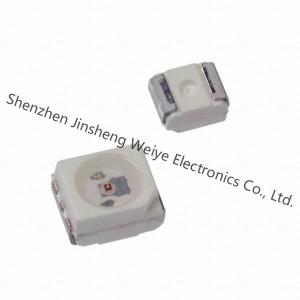

HSMC-A100-Q00J1 LED; SMD; 3528,PLCC2; red; 71.5÷100mcd; 3.5x2.8x1.9mm; 120°; 20mA Images
|
